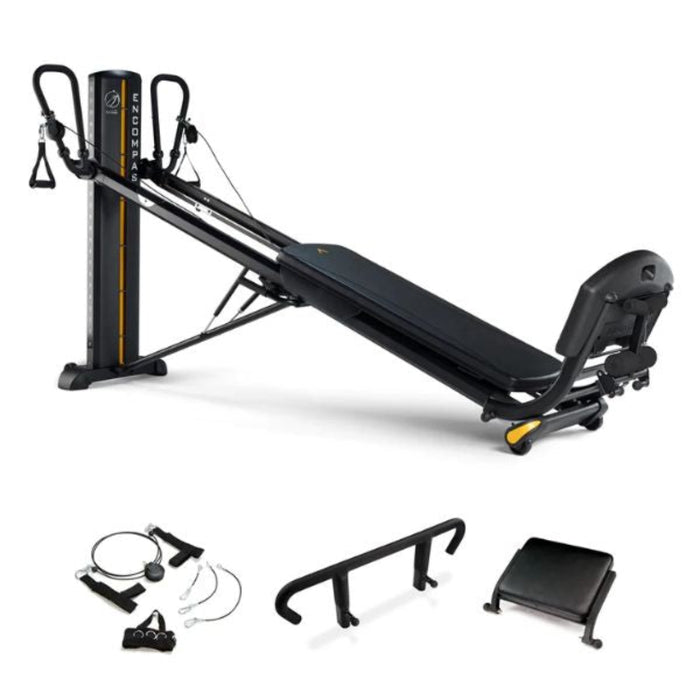

Total Gym ELEVATE Encompass Pilates Package

Total Gym ELEVATE Encompass Pilates Package Exercise Videos

Total Gym ELEVATE Encompass Pilates Package Features

• Complete Pilates Functionality: Adds Pilates training versatility to the ELEVATE Encompass for commercial fitness facilities.
• Telescoping Toe Bar: Enhances upper-body, lower-body, and torso stretching and strengthening.
• Standing Platform: Enables Pilates leg and trunk conditioning exercises while challenging balance and stability.
• Leg Pulley System: Supports a wide range of leg exercises, from resistance training to Pilates, for single- or double-leg workouts.
• Adjustable Glideboard: Helps ensure optimal spinal alignment during transverse movements while introducing new training variations.
• Automatic Rail Locks: Facilitates explosive plyometric jumps to boost workout intensity and effectiveness.
• Hydraulic Rail Lift: Simplifies level adjustments and folding for convenient facility use.
• Multiple Center-Pulley Attachment Points: Enhances double arm-cable load and increases lower extremity range of motion for diverse exercises.
• Retractable Dip Bars: Included as standard to add more versatility to strength and functional workouts.
• LAT Bars: Enhance arm-cable exercises with line-of-pull specificity for improved muscle targeting.
• Variable Resistance: Offers resistance from 1% to 62% of body weight, accommodating users across all fitness levels.
• Low-Compression Pilates Training: Supports reach, flexibility, core control, and fluid movement while minimizing joint compression.
• Mind-Body Training Applications: Helps promote core strength, flexibility, coordination, balance, stability, and movement control.
• Commercial Training Versatility: Expands programming for Pilates, strength training, flexibility work, personal training, and small group sessions.

Total Gym ELEVATE Encompass Pilates Package Specifications

• Product Type: Commercial functional training system with Pilates accessory package
• Included Pilates Accessories: Telescoping Toe Bar, Standing Platform, and Leg Pulley System
• Unfolded Dimensions: 106" L x 38" W x 57" H (2.69 m x 0.96 m x 1.45 m)
• Folded Dimensions: 20" L x 38" W x 57" H (0.51 m x 0.96 m x 1.45 m)
• Tubing: 1.7" x 3.2" aluminum extrusion (4.4 cm x 8.1 cm)
• Tower: Reinforced steel with silver powder coating and internal level locking mechanism
• Glideboard: 16" x 48" (41 cm x 122 cm), 7 position adjustable angles, heavy-duty, tear-resistant vinyl
• Foam Padding: 1 1/2" (4 cm) high rebound, high-density foam
• Rollers: Sealed precision ball bearings
• Pulleys: ABS plastic protective shield over a steel frame with nylon roller and precision ball bearings
• Cables: 2000 lb. test (907.2 kg) nylon-coated steel aircraft cable
• Handles: Soft synthetic rubber padded handles with ABS swivel handle and nylon webbing
• Frame and Rail Construction: Anodized aluminum rails with reinforced steel or forged aluminum connections
• Weight Capacity: Rated to 350 lbs (159 kg)
• Maximum Load Capacity: 500 lbs (227 kg) inclusive of glideboard
• User Height Limit: 6' 5" (2.0 m)
• Unit Weight: 180 lbs (82 kg), 265 lbs including pallet
• Resistance Levels: 22 calibrated incline levels offering 1% to 62% bodyweight resistance
• Storage: Hydraulic lift assists folding, folds and stores upright, and rolls in hand-truck fashion
• Training Applications: Pilates, flexibility, core control, leg pulley exercises, trunk conditioning, balance training, stability training, strength training, functional movement, personal training, and commercial fitness programming

Warranty Information:

• Commercial Warranty Frame: 5 years
• Commercial Warranty Parts and Upholstery: 1 year
• Commercial Warranty Foam and Rubber: 90 days
• Accessories Warranty: 1 year for all parts

Downloads:
ELEVATE Encompass Manual
Encompass with Pilates Product Sheet
Telescoping Toe Bar Instructional Sheet
Standing Platform Instructional Sheet
Leg Pulley System Instructional Sheet
