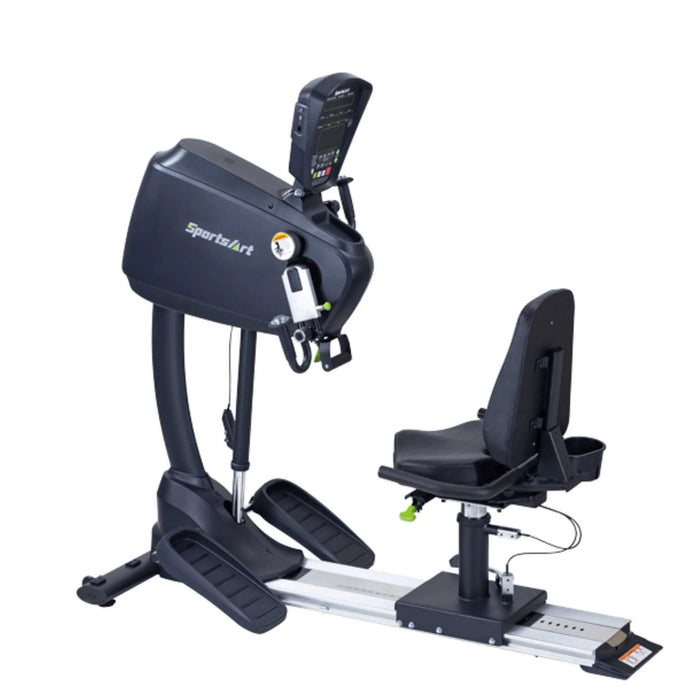

SportsArt UB521M Medical Upper Body Ergometer

SportsArt UB521M Medical Upper Body Ergometer

$7,995.00 - $8,990.00
$7,995.00
$7,695.00
$7,695.00 - $8,390.00
$7,695.00
×
Shipping Icon
Order Online Today:
Ships in ~ 3-5 Business Days
Easy Assembly Icon
Easy Setup, Easy Use:
User Friendly Setup and Usage.
Finance Icon
Flexible Payment Options:
Affirm, PayTomorrow, Klarna, HSA/FSA (TruMed) & More.
Expert
Call For Today's Best Price

Call or contact us today and speak with an expert.

SportsArt UB521M Bilateral Upper Body ErgometerSportsArt UB521M Upper Body Ergometer

The SportsArt UB521M Bilateral Upper Body Ergometer is a full commercial medical fitness and rehabilitation machine designed for adaptable upper-body exercise, conditioning, and therapy-focused training. Built for rehabilitation centers, medical fitness facilities, and commercial gyms, the UB521M provides bi-directional resistance, adjustable range of motion, and wheelchair-friendly accessibility to support users with a wide variety of strength, mobility, and rehabilitation needs.

Featuring a roll-away seat carriage, optional wheelchair platform, adjustable hand cranks, four range-of-motion settings, a quiet belt drive system, tilting console, and pivoting display, the SportsArt UB521M delivers inclusive upper-body training, comfortable positioning, flexible exercise options, and dependable long-term commercial performance.


SportsArt UB521M Bilateral Upper Body Ergometer Features

SportsArt UB521M Medical Upper Body Ergometer
  • Bi-Directional Resistance: Supports forward and reverse movement for diverse therapy and exercise options.
  • Wheelchair-Friendly Design: Accommodates wheelchair users with an optional ramp and roll-away seat or platform.
  • Adjustable Hand Cranks: Adjust 180° to allow varied arm movements and target different muscle groups.
  • Four Range-of-Motion Settings: Support multiple rehabilitation needs and individualized training requirements.
  • Quiet Belt Drive: Provides smooth, comfortable operation while switching between forward and reverse movement.
  • Tilting Console: Helps users view and control workouts from seated or standing positions.
  • Pivoting Display: Improves visibility and usability for different exercise setups.
  • Inclusive Training Design: Supports rehabilitation clients, fitness users, and facilities focused on accessibility.
  • Optional Wheelchair Ramp and Rollaway Seat: Expands accessibility for wheelchair users and rehab environments.
  • Optional Wheelchair Tie Down: Helps support secure positioning during use.
  • Optional Grip Assist Gloves: Provide additional hand support for users who need assistance maintaining grip.

SportsArt UB521M Bilateral Upper Body Ergometer Specifications

  • Model: UB521M
  • Product Type: Bilateral upper body ergometer
  • Use: Medical fitness, rehabilitation, and commercial upper-body training
  • Unit Weight: 268 lbs / 120 kg
  • Dimensions: 69.3" L x 31.5" W x 75" H / 176 x 80 x 190.5 cm
  • Power Requirements: 15A / 120V AC grounded; 220V / 50Hz
  • Resistance Levels: 20 levels with 0.1 increments
  • Maximum User Weight: 500 lbs / 227 kg
  • Readouts: Workout level, calories, time, RPM, distance, METs, watts, and speed
  • Workout Programs: Custom interval, random, hill, track, isokinetic, iso strength, custom HR, cardio/weight loss, custom HR, and ActivZone
  • Range of Motion: Four adjustable ROM settings
  • Movement: Forward and reverse bi-directional resistance
  • Accessibility: Roll-away seat carriage with optional wheelchair platform, ramp, tie down, and grip assist gloves
  • Console: Tilting console and pivoting display
  • Drive System: Quiet, smooth belt drive
  • Tech Specs: 15A 120V AC, grounded
  • Commercial Use: Full commercial fitness and rehabilitation facilities with no usage limit

Warranty Information:

  • Type: Full commercial with no usage limit
  • Frame: Lifetime
  • Parts: 5 years
  • Labor: 3 years
  • Wear Items: 5 years

Downloads:
SportsArt UB521M Bilateral Upper Body Ergometer Manual PDF

Upgrade your rehabilitation or fitness facility with the SportsArt UB521M Bilateral Upper Body Ergometer, built for adaptable upper-body training, accessible exercise, and dependable full commercial durability.

Give users an inclusive and wheelchair-friendly upper body ergometer designed for rehabilitation, strength development, adjustable training, workout comfort, and long-term facility value.
